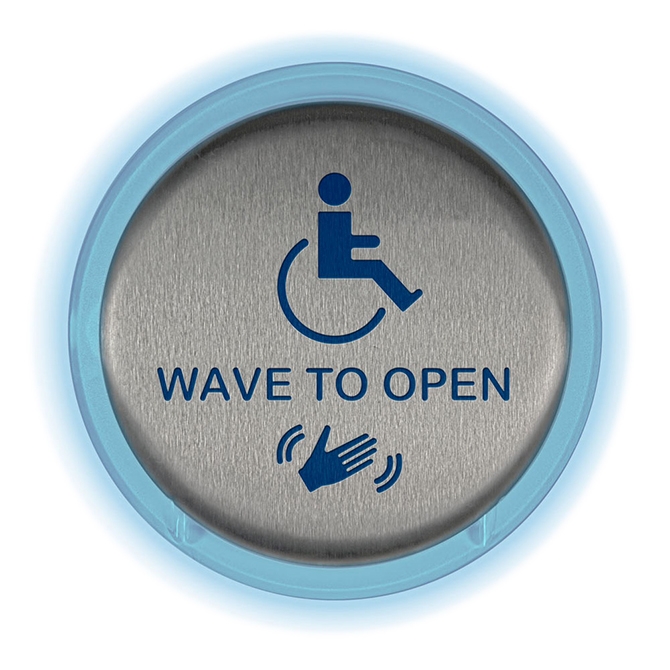

TOUCHLESS ACTUATOR PLATE, 6"
ROUND, STAINLESS STEEL

Description:

Short-Range Touchless Actuator Plate with Text & Logo

Features:

• Industry's first low-profile touchless actuator plate utilizing capacitive technology for the activation of automatic doors
• Round shape
• Hands-free, includes a stainless steel faceplate and an illuminated LED mounting ring for unparalleled durability, visibility and convenience
• Blends form with function into an aesthetically pleasing design that is ideal for healthcare facilities, labs, pharmaceutical, clean rooms, washdown areas and a variety of other applications
• Helps reduce the spread of germs and bacteria
• Innovative features include a short-range adjustable detection zone, visual and audible alerts, IP65 rated enclosure, backlit LED
• Ideal for close quarter environments, short range detection zone reduces unwanted activations
• Highly visible, LED illuminated mounting ring increases visibility
• Durable, weather-resistant design, stainless steel faceplate is ideal for harsh environments
• Aesthetically pleasing, low profile, beveled design reduces accidental damage
• Adjustable audible alerts, visual alerts and touchless detection zones
• Universally compatible with all automatic door control makes and models

Specifications:

• Size: 6"
• Material: Stainless steel faceplate, clear polycarbonate for mounting ring & enclosure
• Technology type: Capacitive sensing
• Detection mode: Proximity
• Supply voltage: 12 VDC or 24 V AC/DC
• Current consumption: 37 mA (typical)
• Temperature range: -20 - 120°F
• Relay: 1 Form A solid-state relay; 0.4 A, 60 VAC/VDC (Max.)
• Cable length: 6" (5-conductor)
• Limited 3 year warranty
• Click Here for Product PDF

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
