Description
Description:

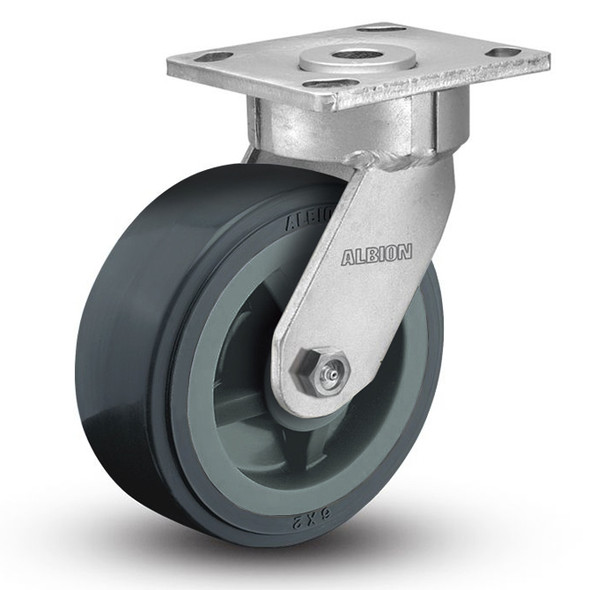

5" Swivel Caster with Top Plate
Features:
- Ergonomically designed for ease of movement and quiet mobility
- Cold formed from 1/4" steel plate, zinc plated
- Yoke base is notched for factory or field-installable 4-position swivel lock
- Precision sealed ball bearing swivel section and wheel bearing eliminate need for routine maintenance
- Polyurethane wheel offers greater load capacity, excellent floor protection, and resists chemicals, acids, caustics and oils
- Moderately crowned polyurethane tread mounted to a polypropylene core
- 1/4" steel legs, formed to increase strength and welded on inside and outside of yoke base
- 1/2" solid axle with lock nut
Specifications:
- Diameter: 5"
- Tread Width: 2"
- Tread Material: Polyurethane (63±5 Shore D)
- Top Plate Dimensions: 4" x 4-1/2"
- Bearing: Precision Ball
- Load Height: 6-1/2"
- Swivel Radius: 4-1/8"
- Weight Capacity: 750 lbs.
ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
