Description
Description:

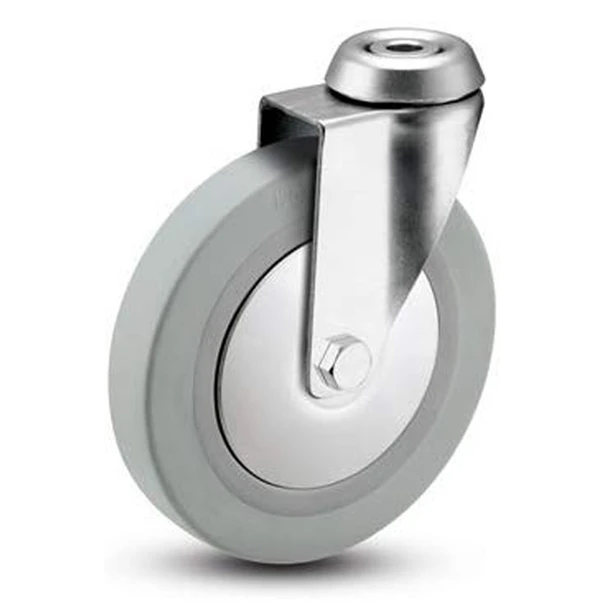

3" Chrome Swivel Caster with Hollow Kingpin
Features:
- Polished chrome finish
- Double ball swivel raceway for added strength
- Hollow kingpin designed to accept a 7/16" bolt or other stem type
- Total lock brake locks the wheel and swivel mechanism simultaneously
- Full thread guards for added protection
Specifications:
- Diameter: 3"
- Tread Width: 7/8"
- Tread Material: Thermoplastic Rubber
- Hollow Kingpin Diameter: 7/16"
- Bearing: Ball
- Load Height: 4"
- Swivel Radius: 3-15/16"
- Durometer: 85 (±5) Shore A
- Temperature Range: -30° F to 180° F
- Weight Capacity: 140 lbs.
- When ordering, please specify brake option
ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
Additional Information
Caster Type: |
Swivel |
Load Rating: |
Light Duty |
Wheel Diameter: |
3" |
Tread Width: |
7/8" |
Mount Type: |
Hollow Kingpin |
Tread Material: |
Thermoplastic Rubber |
Bearing Type: |
Ball |
Brake Option: |
No Brake |
Brake Option: |
Total Lock Brake |
