Description
Description:

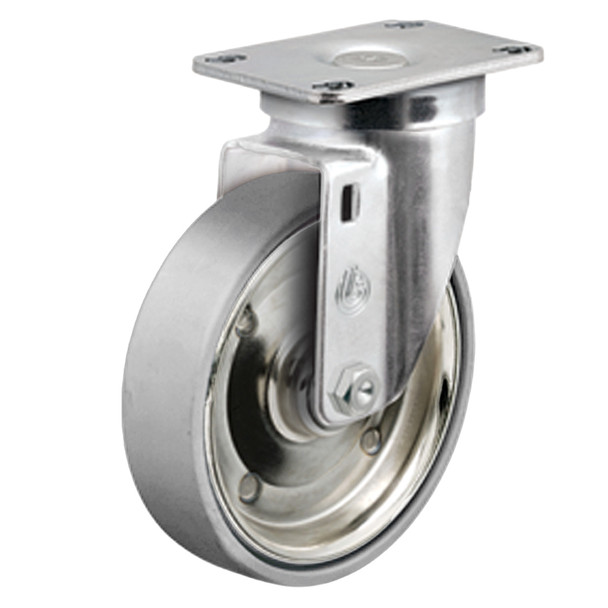

5" Swivel Caster with Hollow Kingpin
Features:
- Bright zinc plating to resist rust and corrosion
- Heavy gauge cold rolled steel, formed for strength
- Dust cap which protects swivel raceway bearings and improves performance
- Double ball bearing swivel with hardened raceways
- 3/8" diameter axle bolt with lock nut
- 1/2" steel rivet kingpin, hydraulically upset
Specifications:
- Diameter: 5"
- Tread Width: 1-1/4"
- Tread Material: Grey Rubber
- Fitting: Top Plate
- Bearing: Ball
- Load Height: 6-1/4"
- Swivel Radius: 4"
- Weight Capacity: 200 lbs.
ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
Additional Information
Caster Type: |
Swivel |
Load Rating: |
Medium Duty |
Wheel Diameter: |
5" |
Tread Width: |
1-1/4" |
Mount Type: |
Top Plate |
Tread Material: |
Rubber |
Bearing Type: |
Ball |
Brake Option: |
No Brake |
