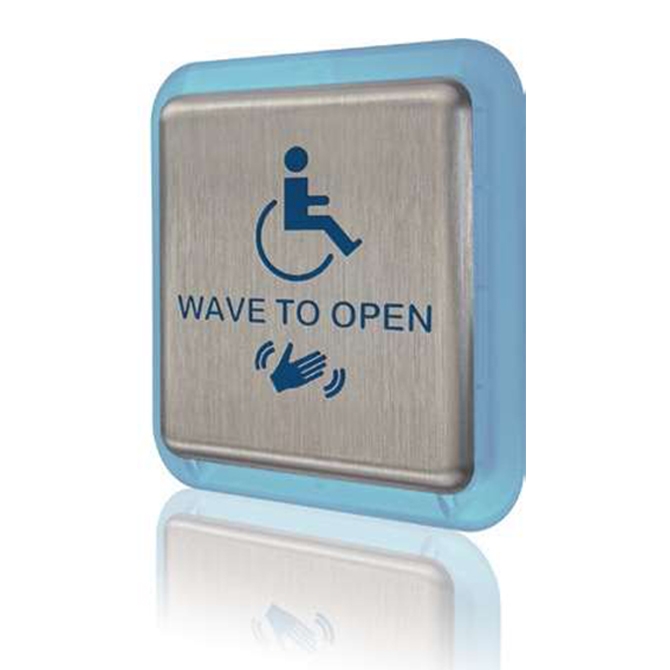

TOUCHLESS ACTUATOR PLATE, 4.75
SQUARE, STAINLESS STEEL

Description:

Short-Range Touchless Actuator Plate with Text & Logo

Features:

  • Industry's first low-profile touchless actuator plate utilizing capacitive technology for the activation of automatic doors
  • Square shape
  • Hands-free, includes a stainless steel faceplate and an illuminated LED mounting ring for unparalleled durability, visibility and convenience
  • Blends form with function into an aesthetically pleasing design that is ideal for healthcare facilities, labs, pharmaceutical, clean rooms, washdown areas and a variety of other applications
  • Helps reduce the spread of germs and bacteria
  • Innovative features include a short-range adjustable detection zone, visual and audible alerts, IP65 rated enclosure, backlit LED
  • Ideal for close quarter environments, short range detection zone reduces unwanted activations
  • Highly visible, LED illuminated mounting ring increases visibility
  • Durable, weather-resistant design, stainless steel faceplate is ideal for harsh environments
  • Aesthetically pleasing, low profile, beveled design reduces accidental damage
  • Adjustable audible alerts, visual alerts and touchless detection zones
  • Universally compatible with all automatic door control makes and models

Specifications:

  • Size: 4.75"
  • Material: Stainless steel faceplate, clear polycarbonate for mounting ring & enclosure
  • Technology type: Capacitive sensing
  • Detection mode: Proximity
  • Supply voltage: 12 VDC or 24 V AC/DC
  • Current consumption: 37 mA (typical)
  • Temperature range: -20 - 120°F
  • Relay: 1 Form A solid-state relay; 0.4 A, 60 VAC/VDC (Max.)
  • Cable length: 6" (5-conductor)
  • Limited 3 year warranty
  • Click Here for Product PDF

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN

  • Item #: AL-85853
