5" SWIVEL LOCK CASTER, POLY
PRECISION, SPECIFY BOLT STEM

Description:

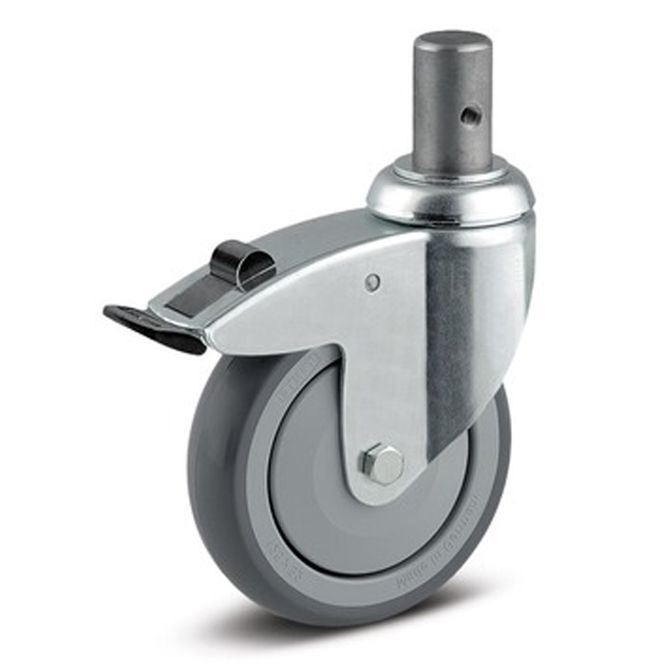

5" Swivel Lock Caster with Round Bolt Stem

Features:

• Housing made of pressed steel
• Bright zinc plated, blue passivated, double ball bearing swivel head
• Swivel lock brake locks the swivel mechanism only
• Bolt stem with 5/16" threaded hole 3/4" above mounting surface, for use with round tubing
• Threaded axles allow for easy wheel change
• Wheel center made of polyamide
• Threadguards included

Specifications:

• Diameter: 5"
• Tread Width: 1-1/4"
• Tread Material: Polyurethane
• Fitting: Round Bolt Stem
• Bearing: Precision Ball
• Brake: Swivel Lock Brake
• Load Height: 6-7/16"
• Swivel Radius: 5-5/32"
• Durometer: 40 Shore D
• Temperature Range: -40° F to 175° F
• Weight Capacity: 220 lbs.
• AL-41492MM for use with Hill-Rom Bed Models: 840/842
• AL-41492MM Hill-Rom Part Number: 34709 and/or SA1220
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• When ordering, please specify bolt stem size

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
