5" TOTAL LOCK CASTER, ROLLER
ANTI-MICROBIAL, TOP PLATE

Description:

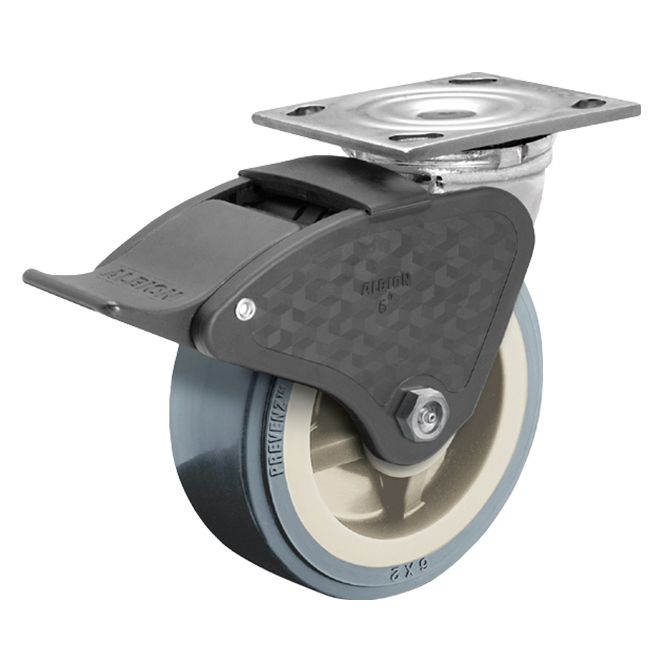

5" Antimicrobial Total Lock Caster with Top Plate

Features:

• The EPA registered and FDA compliant anti-microbial additive used in Prevenz™ wheels is designed to suppress the growth of a variety of destructive and odor causing microbes including bacteria, molds, mildew and fungi
• These wheels are suitable for a variety of applications including medical equipment, food equipment, pharmaceutical, chemical, meat & poultry processing plants and more
• Total lock brake locks the wheel and swivel housing simultaneously
• Cold formed from 1/4" steel plate
• New bigger, stronger 3/4" kingpin
• Smooth formed, hardened double ball bearing raceways minimize ball indentation and wear
• 1/4" steel fork legs, formed to increase strength and welded to yoke base
• 1/2" diameter hollow axle complete with lock nut
• Nylon seal retaining/thrust washers
• Zerk fitting in swivel section and in recessed head of hollow axle

Specifications:

• Diameter: 5"
• Tread Width: 2"
• Tread Material: Prevenz™ Anti-Microbial Polyurethane
• Top Plate Size: 4" x 4-1/2"
• Bearing: Roller
• Load Height: 6-1/2"
• Swivel Radius: 7"
• Weight Capacity: 750 lbs.

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
