5" SWIVEL CASTER W/BRAKE, POLY
ROLLER, 4" X 4-1/2" PLATE

Description:

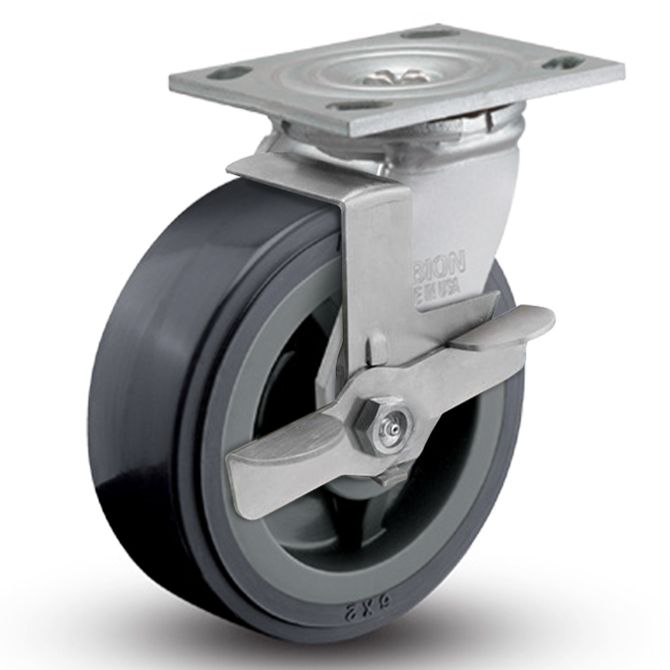

5" Swivel Caster with Top Plate and Wheel Brake

Features:

• Cold formed from 1/4" steel plate for added strength, fork legs welded to base
• Heat treated, smooth formed, hardened double ball bearing raceways minimize ball indention and wear
• Side access brake locks the wheel only
• 5/8" diameter orbitally spun rivet
• Nylon seal retaining/thrust washers
• Zerk fitting in swivel section
• 3 year warranty

Specifications:

• Diameter: 5"
• Tread Width: 2"
• Tread Material: Polyurethane
• Top Plate Dimensions: 4" x 4-1/2"
• Bolt Hole Spacing: 2-5/8" slotted to 3" x 3" slotted to 3-5/8"
• Mounting Bolt Size: 3/8"
• Bearing: Roller
• Brake: Side Lock Wheel Brake
• Load Height: 6-1/2"
• Swivel Radius: 4-1/8"
• Durometer: 63 (±5) Shore D
• Temperature Range: -40° F to 180° F
• Weight Capacity: 750 lbs.
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
