5" SWIVEL CASTER W/BRAKE, POLY
PRECISION, 4" X 4-1/2" PLATE

Description:

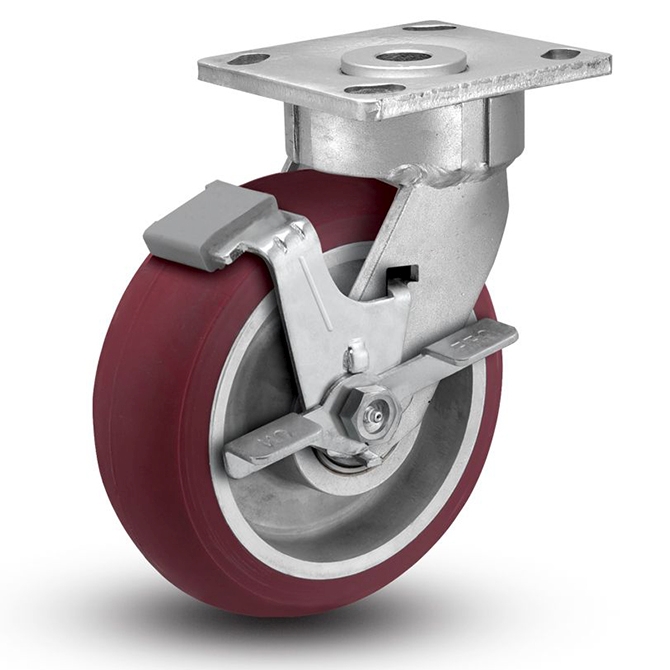

5" Wheel Brake Swivel Caster with Top Plate

Features:

• Ergonomically designed for ease of movement and quiet mobility
• Cold formed from 1/4" steel plate, zinc plated
• Yoke base is notched for factory or field-installable 4-position swivel lock
• Side lock wheel brake locks the wheels in place
• Precision sealed ball bearing swivel section and wheel bearing eliminate need for routine maintenance
• Polyurethane wheel protects floors, is non-marking and delivers quieter operation than standard metal wheels
• Round polyurethane tread mounted on an aluminum core provides superior rolling and maneuverability
• 1/4" steel legs, formed to increase strength and welded on inside and outside of yoke base
• 1/2" solid axle with lock nut

Specifications:

• Diameter: 5"
• Tread Width: 2"
• Tread Material: Polyurethane (85 Shore A)
• Top Plate Dimensions: 4" x 4-1/2"
• Bearing: Precision Ball
• Brake: Side Lock Wheel Brake
• Load Height: 6-1/2"
• Swivel Radius: 4-3/4"
• Weight Capacity: 1,000 lbs.
