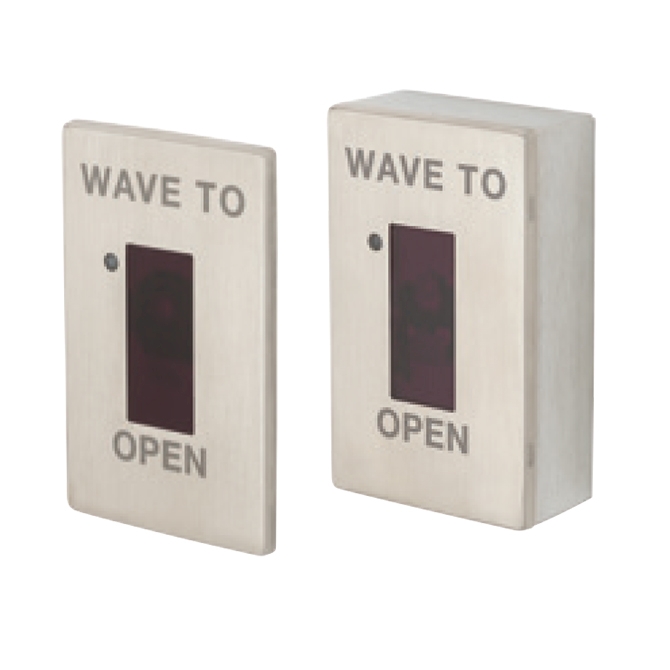

WAVE-TO-OPEN SENSOR SWITCH
SINGLE GANG PLATE, SATIN STNLS

Description:

Touchless Wave-To-Open Switch

Features:

• Ideal for request-to-exit situations where a sanitary environment is desired such as healthcare facilities, restaurants, restrooms or labs
• Touchless, infrared sensor with dual LED & time delay
• Infrared sensor technology for no contact switch activation
• Sensor detection range up to approximately 4"
• Dual LED (Red/Green) indicates inactive/active status
• Time delay settable for 0.5, 5, 10 or 20 seconds
• 12/24 VDC, S.P.D.T. switch contacts rated at 2A/30VAC
• Single gang stainless steel, weather resistant and vandal resistant faceplate
• Operating temperature range is -10° F to +130° F
• Available in flush or surface mount with metal box
• Helps reduce the spread of germs and bacteria

Specifications:

• Satin stainless steel
• Operating voltages: 12/24 VDC
• Relay type: SPDT
• Sensor technology: IR Beam
• Mounting type: 1 gang
• Package dimensions without box: 4"W x 6.25"L x 1.75"H
• Package dimensions with box: 3.75"W x 6.5"L x 1.75"H
• When ordering, please specify with or without surface box

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
