Description:

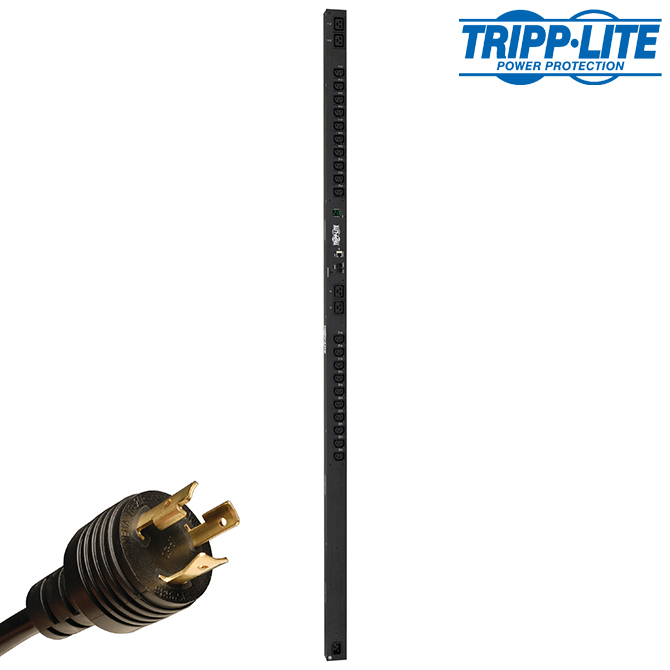

3.2-3.8kW Single Phase 200-240V Switched PDU

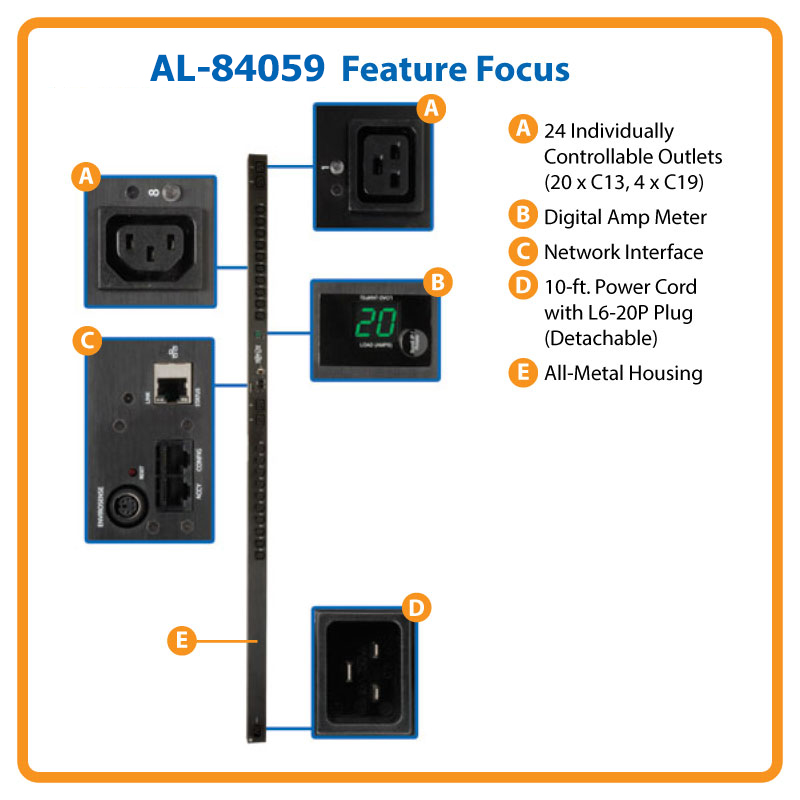

Features:
- 16/20A 200/208/230/240V Switched PDU with built-in web/network interface in 0U 70'' vertical rackmount form factor
- C20 inlet accepts a variety of site specific cordsets; 10 ft. L6-20P power cable included
- 24 switched outlets (20 C13; 4 C19
- Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
- Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
- Network interface provides PDU control and data regarding input voltage, frequency and loading information
- Digital display reports load level information in amps
- Supports user-specified alarm notification thresholds
- Tiered access privileges allow an administrator and a guest to login via web browser
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
Specifications:
- Tripp Lite Part #: PDUMV20HVNET
- Dimensions: 70'' H x 2-1/4'' W x 2-5/8'' D
- Click Here for Product Features
- Click Here for Product PDF
ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
