DC POWER SUPPLY, TAA-COMPLIANT
13.8VDC, AC-TO-DC CONVERSION

• Efficiently converts 120 volts AC into 13.8 volts DC
• Smaller footprint maximizes operating space
• Crowbar overvoltage protection prevents damage to connected equipment due to overvoltages
• Current-limiting electronic foldback enables time-controlled automatic overcurrent protection in case of overload
• Solid state, integrated circuit maintains excellent regulation of output voltage
• Regulated output voltage maintains up to 95% of no load value
• High quality filtering creates very low ripple/low noise operation
• Heavy-duty power transformer provides complete isolation from noise on incoming AC power
• Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit
• Illuminated on/off switch

Specifications:

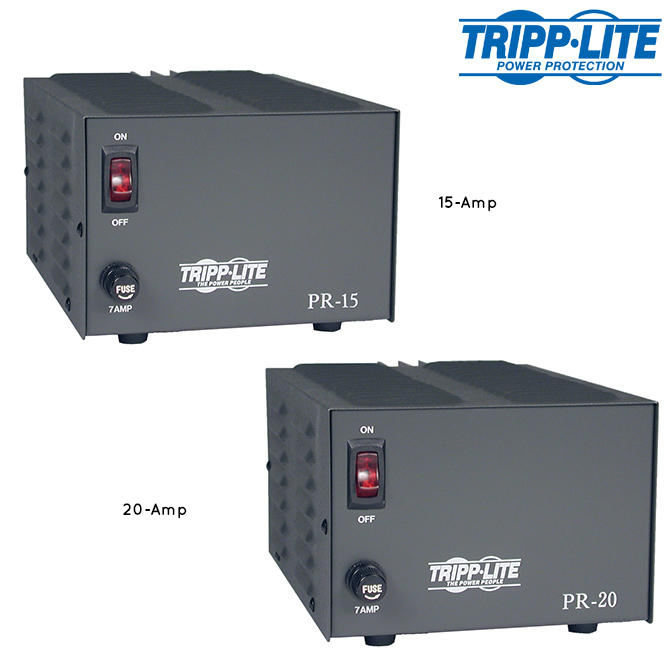

• Tripp Lite Part #: PR15, PR20

• Dimensions: 4-1/2''H x 6''W x 10''D
• Connectors: Hardwire terminals / Red positive (+), Black negative (-)
• Working Temperature Range: 0° C to 40° C (32° F to 104° F), 0 to 95% humidity, non-condensing
• Storage Temperature Range: -15° C to 50° C (5° F to 122° F)
• LED Indicators: Red LED indicates that DC output is being provided
• Color: Black

• Click Here for product features
• Click Here for Product PDF
• When ordering, please specify 15A or 20A
