RACK-MOUNTED AC UNIT
7,000 BTU, 120V

Description:

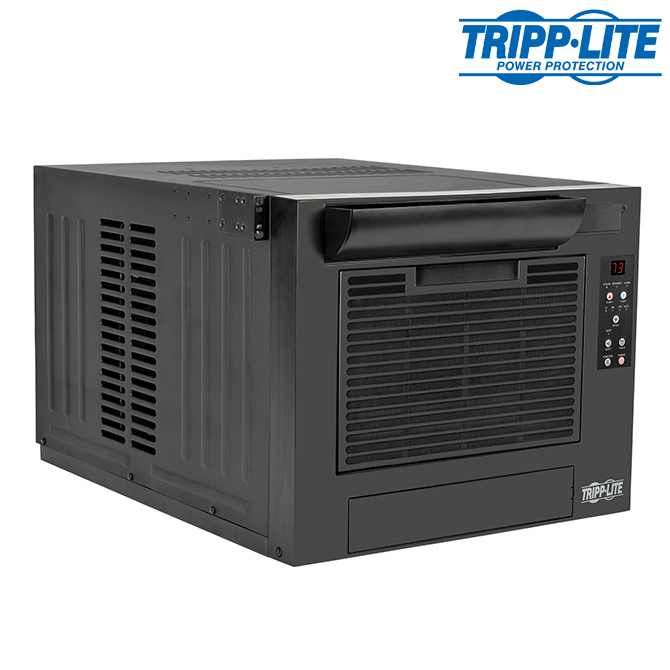

Rack-Mounted AC Unit

Features:

• The AL-83985 is the first EIA-compliant rack-mounted air conditioning unit specifically designed to cool IT equipment in data centers, server rooms and network closets
• Ideal for enclosures with perforated doors(not for use in enclosures with solid/plexiglass/glass doors)
• When using a bottom-mounting configuration, the enclosure’s floor must be open with no tray or pan below the unit

• Evaporator coils can be vented through enclosure’s rear perforated doors or optional AL-83984

• In an open frame application, cooling air delivered to the equipment is lessened, since cold air escapes into the room. Condenser must be ducted using AL-83984

• Saves valuable floor space in IT environments with available rack space
• Saves energy with efficient close-coupled cooling, cooling only the equipment inside the rack enclosure instead of the entire room
• Provides 7,000 BTU/h(2.0 kW) of cooling capacity in a rack-mounted 8U chassis
• Prevents equipment shutdowns, malfunctions and failures caused by overheating and temperature fluctuations
• Uses environmentally friendly R410A refrigerant
• Directional output vent aims cool air upward or downward, allowing the unit to operate from the bottom or top of the rack enclosure
• Supports unattended shutdown and startup, including automatic restarts after power failures
• Intuitive front-panel controls with an informative digital display and diagnostic LEDs
• Operates at noise levels comparable to an average office setting
• Plugs into a standard 15A outlet(NEMA 5-15R)
• Built-in evaporator eliminates condensation—no floor drain or water collection tank needed
• Magnetic air dam attaches to rack enclosure’s front door to optimize airflow
• Includes mounting hardware for installation in EIA-standard 19 in. rack enclosures

Specifications:

• Tripp Lite Part #: SRCOOL7KRM

• Dimensions: 14''H x 17-3/8''W x 22-1/2''D

• Color: Black

• Click Here for Product PDF

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
