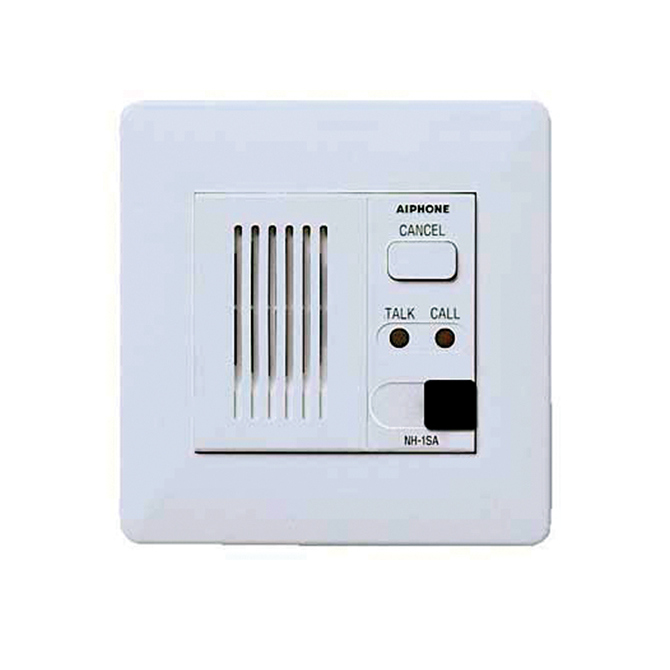

NH-1SA-ACB PUSHBUTTON STATION

Description:

NH-1SA/ACB Single Patient Pushbutton Station

Features:

• The patient station provides call annunciation and two-way hands free communication with the master station
• The corridor lamp and bathroom pull cord for each room are wired to the patient station, with all tone and light signaling and communication processed through the common wiring
• When the bedside call button is pressed, a routine call is registered at the master station, and the red CALL LED is lit on the patient station
• When the call is answered at the master station, the green TALK LED is lit
• The person at the patient station speaks hands free
• Unit shall flush mount into a standard 2-gang box
• High impact ABS fire-retardant plastic

Specifications:

• Aiphone Part #: B-713

• Dimensions: 4-1/2'' x 4-9/16'' x 1-13/16''
• Color: White

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
