CONCEALED SECURITY GRAB BAR
SPECIFY SIZE

Description:

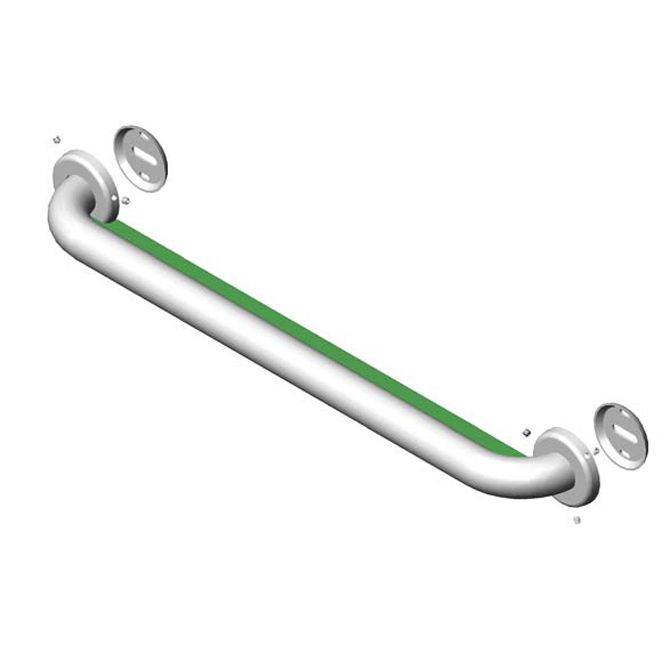

Anti-Ligature Grab Bar

Features:

• This security / anti-ligature grab bar is fabricated in accordance with ADA specifications and is fully enclosed, thereby abating ligature risk
• The grab bar is fabricated from 18 gauge, 1-1/2" diameter stainless steel tubing with a #4 satin finish
• The closure plate is fabricated from 11 gauge stainless steel plate with a #4 satin finish and is fully welded to the inside of the grab bar
• The grab bar mounts to a tenon plate with concealed stainless steel set screws, which are supplied
• Fasteners for the tenon plate will vary with application and are not included

Specifications:

• Wall Clearance: 1-1/2''
• Tubing Diameter: 1-1/2''
• Flanges: 3'' diameter, 11 gauge
• Weight Capacity: 250 lbs.
• Click Here for product PDF
• When ordering, please specify length

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
