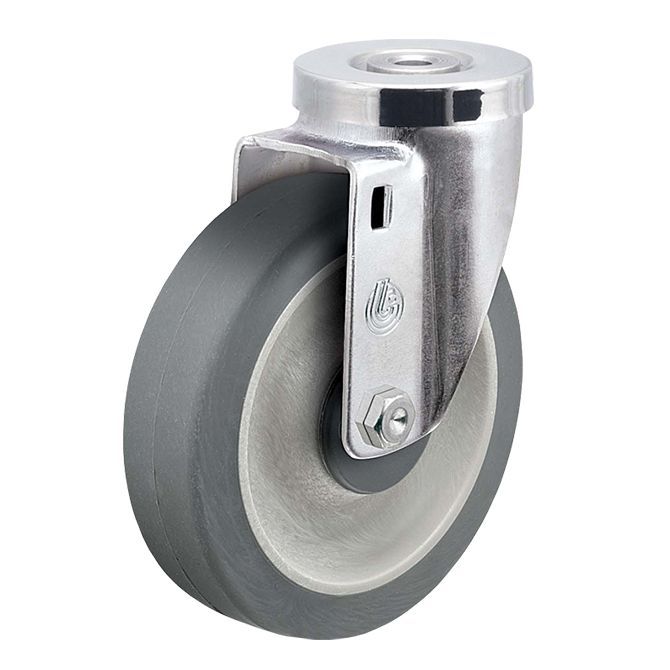

4" SWIVEL CASTER, TPR FLAT
DELRIN, 3/8" HOLLOW KINGPIN

Description:

4" Swivel Caster with Hollow Kingpin

Features:

• Heavy gauge cold-rolled steel, formed for strength
• Thermoplastic rubber wheel is non-marking and the resilient tread material rejects floor debris
• Flat tread provides a greater load capacity while maintaining non-marking and easy rolling abilities
• Hollow kingpin designed to accept a 3/8" diameter bolt or other stem type
• Bright zinc plating to resist rust and corrosion
• All swivel models feature dust cap which protects swivel raceway bearings and improves performance
• Double ball bearing with hardened raceways
• 3/8'' diameter axle bolt with lock nut
• 1/2'' steel rivet, hydraulically upset

Specifications:

• Diameter: 4"
• Tread Width: 1-1/4"
• Tread Material: Thermoplastic Rubber (Flat)
• Hollow Kingpin Diameter: 3/8"
• Bearing: Delrin
• Load Height: 4-15/16"
• Swivel Radius: 3-1/2"
• Weight Capacity: 300 lbs.
