TOTAL LOCK NYLON CASTER
FOR MODELS 690N & 694N

Description:

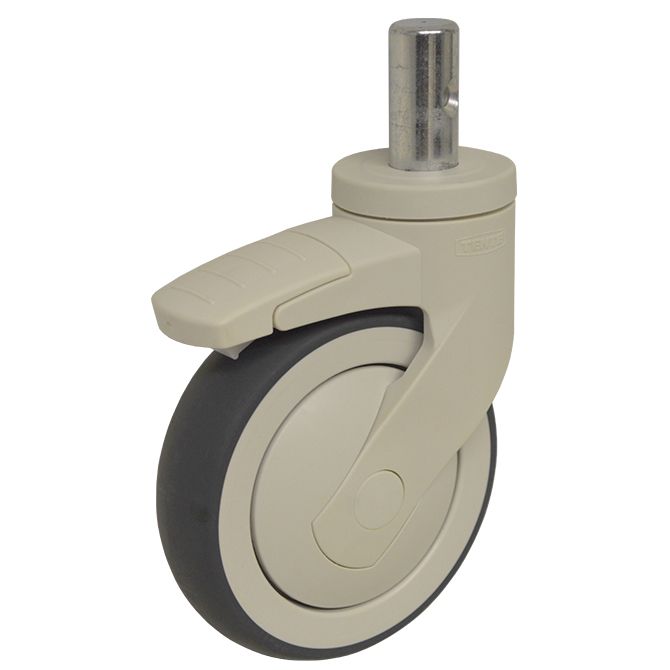

5'' Total Lock Caster with Round Bolt Stem

Features:

• Housing and wheel made from high grade synthetic materials
• Double ball bearing swivel head
• Solid stem for use with tubing
• Wheel center made of polypropylene
• Total lock brake for simultaneously locking the wheel and swivel housing
• Bolt stem with 5/16" threaded hole 3/4" above mounting surface, for use with round tubing
• Threadguards standard
• For use with Winco Recliners 690N & 694N

Specifications:

• Diameter: 5''
• Tread Width: 1-1/4''
• Tread Material: Thermoplastic Rubber
• Bolt Stem Size: 7/8'' x 1-3/4'' H
• Bearing: Precision Ball
• Load Height: 6-11/32''
• Swivel Radius: 3-15/16''
• Weight Capacity: 220 lbs.
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
