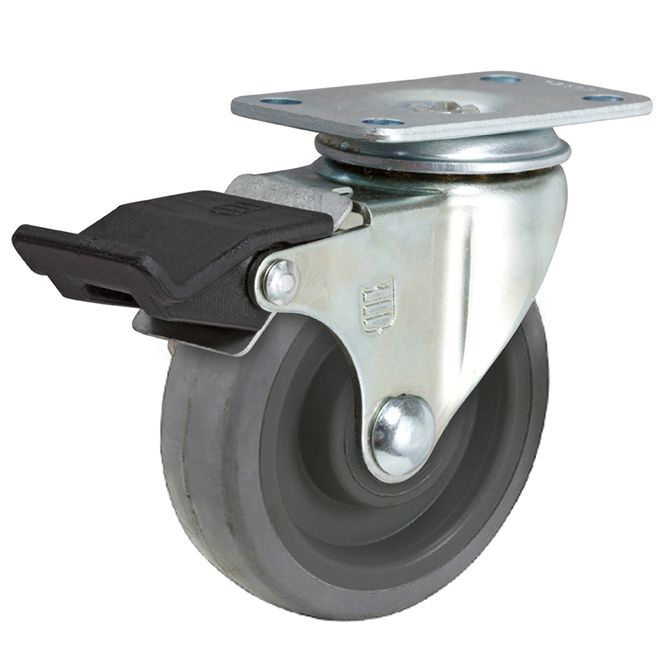

3" TOTAL LOCK CASTER, TPR
ANNULAR. SPECIFY TOP PLATE

Description:

3" Total Lock Caster with Top Plate

Features:

• Constructed from heavy duty gauge steel, formed for extra strength
• Bright zinc plated
• Full double ball swivel raceway, hardened to resist wear
• Total lock brake locks the wheel and swivel mechanism simultaneously
• 3/8" diameter axle bolt with lock nut
• 1/2" king pin, hydraulically upset to increase shock absorbing capacity
• Thermoplastic rubber tread chemically bonded to a high-impact polypropylene core
• Non-marking and floor protective with higher load capacities than standard rubber

Specifications:

• Diameter: 3"
• Tread Width: 1-1/4"
• Tread Material: Thermoplastic Rubber
• Fitting: Top Plate
• Bearing: Annular
• Brake: Total Lock Brake
• Load Height: 4"
• Weight Capacity: 220 lbs.
• When ordering, please specify top plate size

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
