3-1/2" SWIVEL CASTER, TPR
ANNULAR, 2-1/2" X 3-3/4" PLATE

Description:

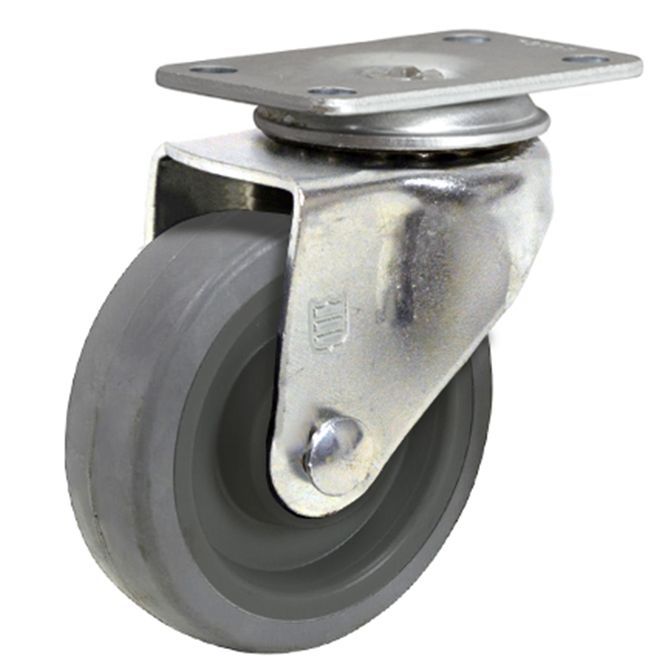

3-1/2" Swivel Caster with Top Plate

Features:

• Constructed from heavy duty gauge steel, formed for extra strength
• Bright zinc plated
• Full double ball swivel raceway, hardened to resist wear
• 3/8" diameter axle bolt with lock nut
• 1/2" king pin, hydraulically upset to increase shock absorbing capacity
• Thermoplastic rubber tread chemically bonded to a high-impact polypropylene core
• Non-marking and floor protective with higher load capacities than standard rubber

Specifications:

• Diameter: 3-1/2"
• Tread Width: 1-1/4"
• Tread Material: Thermoplastic Rubber
• Top Plate Dimensions: 2-1/2" x 3-3/4"
• Bolt Hole Spacing: 1-3/4" x 2-3/4" slotted to 3"
• Mounting Bolt Size: 5/16"
• Bearing: Annular
• Load Height: 4-5/8"
• Swivel Radius: 3-1/4"
• Weight Capacity: 250 lbs.
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• When ordering, please specify thread guard option

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
