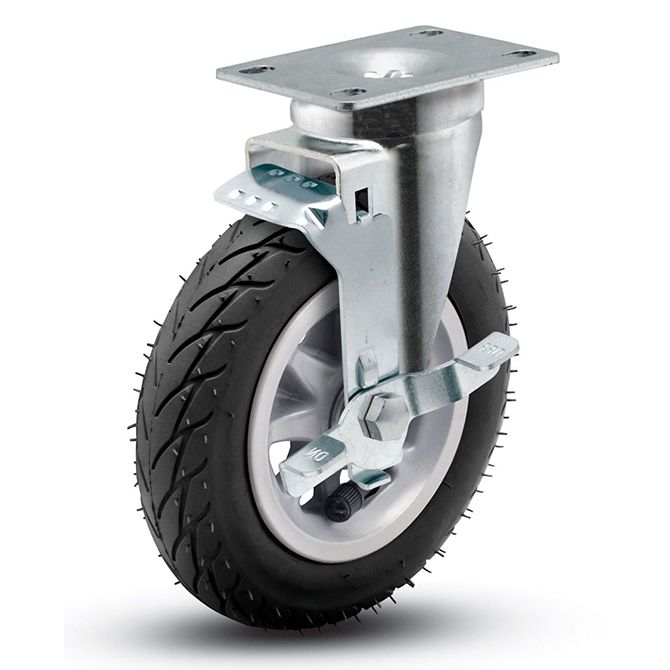

6" SWIVEL CASTER WITH BRAKE
PNEUMATIC, 2-5/8"X 3-3/4"PLATE

Description:

6" Swivel Caster with Top Plate and Brake

Features:

• Constructed of high strength steel for added durability
• Durable zinc finish
• Dual ball bearing raceway
• Side access wheel brake is foot operated
• Raceway dust cap for increased caster life and performance
• 3/8" diameter axle bolt with nut
• Pneumatic wheel is shock-absorbing to reduce vibration and protect equipment and cargo; offers a smooth ride indoors or outdoors and will roll over obstacles, thresholds and uneven sufaces with ease

Specifications:

• Diameter: 6"
• Tread Width: 1-1/4"
• Tread Type: Pneumatic
• Tire Pressure: 90 PSI Standard
• Top Plate Dimensions: 2-5/8" x 3-3/4"
• Bolt Hole Spacing: 1-3/4" x 2-3/4" slotted to 3"
• Mounting Bolt Size: 5/16"
• Bearing: Ball
• Brake: Wheel Brake
• Load Height: 7-1/8"
• Swivel Radius: 4-1/2"
• Weight Capacity: 150 lbs.

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
