INTERMITTENT SUC REG
DISS ML/OHMEDA DIAMOND

Description:

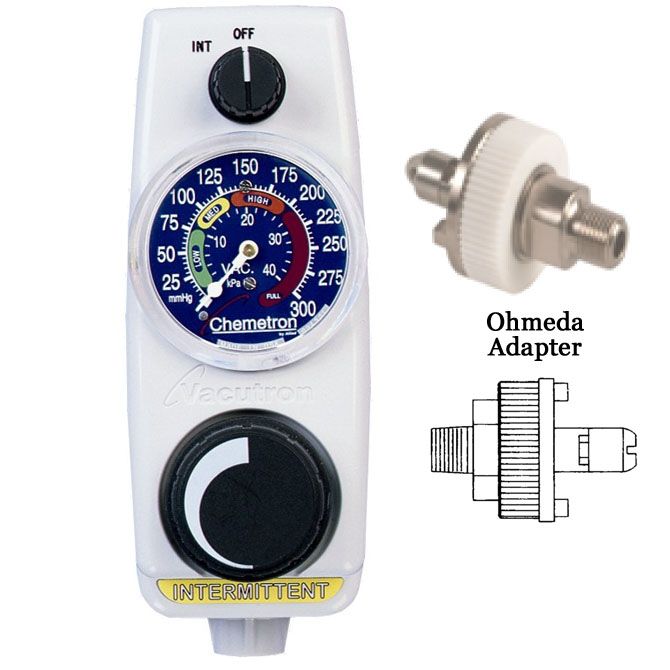

Vacutron® Intermittent Suction Regulator

Features:

• Designed to deliver intermittent vacuum only, when clinicians want to ensure that constant suction is never delivered
• Superior regulation mechanism ensures stable vacuum settings even with source fluctuations
• Internal safety valve limits the maximum vacuum level to 170 mm Hg in the event of failure
• Oversized vacuum regulating knob ensures precise vacuum control
• High-impact polycarbonate case for strength and durability
• Color-coded glow-in-the-dark analog gauge provides easy readability

Specifications:

• Inlet to Wall: Ohmeda
• Outlet to Fitting: DISS Male
• Operating Modes: Off and Intermittent
• Regulated Vacuum Range: 0-150 mm Hg
• Intermittent Cycle Times: 17 seconds of suction, 10 seconds without suction
• Vacuum Gauge Scale: 0-300 mm HG in 5 mm Hg increments
• Dimensions: 6-3/4" H x 2-5/8" W x 4-1/16" D
• Warranty: 10 years

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
