CONT SUC REG/DISS MALE
OHMEDA DIAMOND

Description:

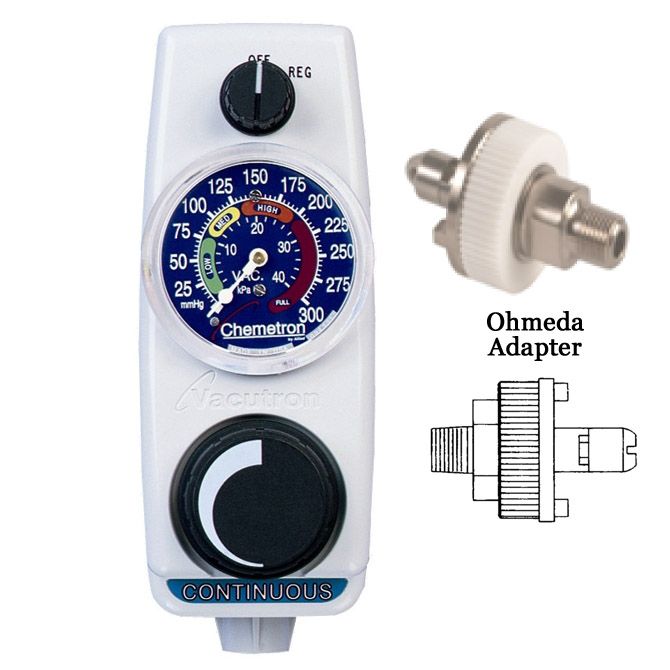

Vacutron® Continuous Suction Regulator

Features:

• Designed to deliver constant vacuum for general suction procedures
• Internal safety relief valve limits the maximum vacuum level to 320 mm Hg in the event of failure
• Superior regulation mechanism ensures stable vacuum settings even with source fluctuations
• Oversized vacuum regulating knob ensures precise vacuum control
• High-impact polycarbonate case for strength and durability
• Color-coded glow-in-the-dark analog gauge provides easy readability

Specifications:

• Inlet to Wall: Ohmeda
• Outlet to Fitting: DISS Male
• Operating Modes: Off and Regulated
• Regulated Vacuum Range: 0-300 mm Hg
• Vacuum Gauge Scale: 0-300 mm HG in 5 mm Hg increments
• Dimensions: 6-3/4" H x 2-5/8" W x 4-1/16" D
• Warranty: 10 years

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
