CONT INTER SUC REG
BARBED STEM/CHEMTRON

Description:

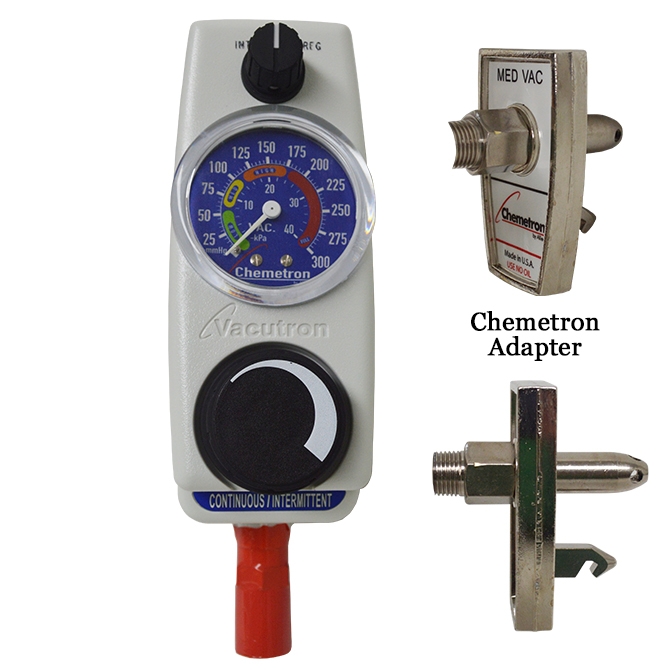

Vacutron® Continuous/Intermittent Suction Regulator

Features:

• Designed to support a variety of procedures requiring constant or intermittent suction
• Constant suction is used primarily to maintain a patient's airway, while intermittent suction is used for drainage procedures
• Superior regulation mechanism ensures stable vacuum settings even with source fluctuations
• Dual safety relief valves limit the maximum vacuum level (320mm Hg Continuous, 170mm Hg Intermittent) of both modes in the event of failure
• Oversized vacuum regulating knob ensures precise vacuum control
• High-impact polycarbonate case for strength and durability
• Color-coded glow-in-the-dark analog gauge provides easy readability

Specifications:

• Inlet to Wall: Chemetron®
• Outlet to Fitting: Metal Barbed Stem
• Operating Modes: Off, Regulated and Intermittent
• Regulated Vacuum Range: 0-300 mm Hg
• Intermittent Vacuum Range: 0-150 mm Hg
• Intermittent Cycle Times: 17 seconds of suction, 10 seconds without suction
• Vacuum Gauge Scale: 0-320 mm HG in 5 mm Hg increments
• Dimensions: 6-3/4" H x 2-5/8" W x 4-1/16" D
• Warranty: 10 years

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
