SURGICAL SUC REGULATOR
BARBED STEM/CHEMTRON

Description:

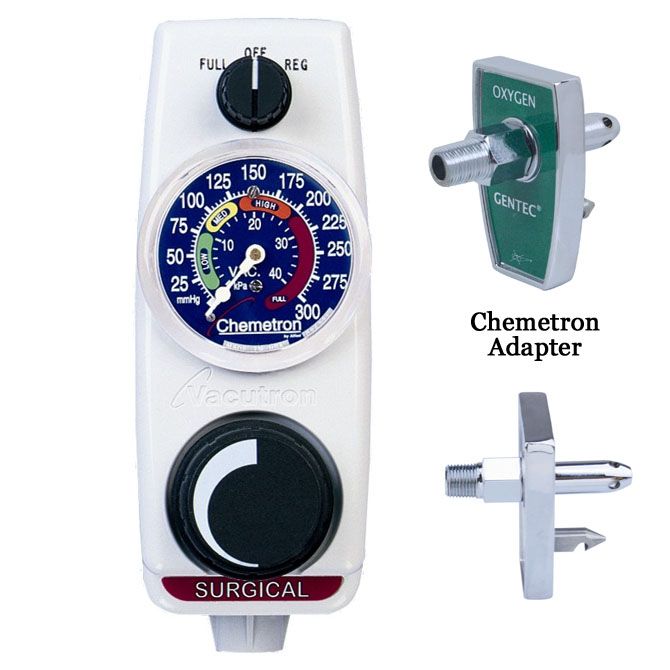

Vacutron® Surgical Continuous Suction Regulator

Features:

• Designed for use in surgical suites
• There are two operational modes: regulated and full line (unregulated)
• Internal safety relief valve limits the maximum vacuum level to 320 mm Hg in the event of failure
• Superior regulation mechanism ensures stable vacuum settings even with source fluctuations
• Oversized vacuum regulating knob ensures precise vacuum control
• High-impact polycarbonate case for strength and durability
• Color-coded glow-in-the-dark analog gauge provides easy readability

Specifications:

• Inlet to Wall: Chemetron®
• Outlet to Fitting: Metal Barbed Stem
• Operating Modes: Off, Regulated and Full Line
• Regulated Vacuum Range: 0-300 mm Hg
• Vacuum Gauge Scale: 0-300 mm HG in 5 mm Hg increments
• Dimensions: 6-3/4" H x 2-5/8" W x 4-1/16" D
• Warranty: 10 years

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
