3" SWIVEL CASTER, TPR
2-5/8" X 3-3/4" PLATE

Description:

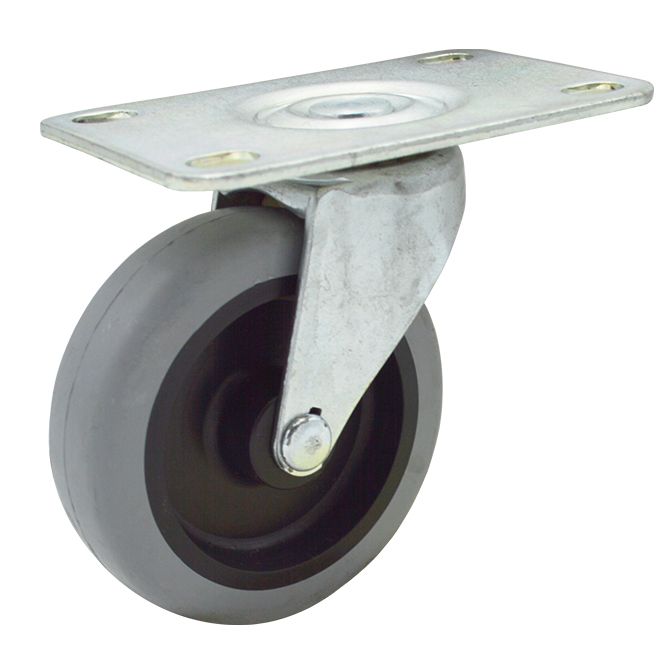

3" Swivel Caster with Top Plate

Features:

• Manufactured in the USA, this very popular light duty wheel caster series is sure to surpass your mobility expectations
• High-strength and heat-treated steel for increased durability and caster life
• Dual ball swivel raceway
• Non-marking, and floor-protective, the thermoplastic rubber tread is chemically bonded to the core, and is resistant to chemicals and oils
• RoHS-compliant zinc plating for corrosion resistance
• NSF-approved

Specifications:

• Diameter: 3"
• Tread Width: 13/16"
• Tread Material: Thermoplastic Rubber
• Top Plate Dimensions: 2-5/8" x 3-3/4"
• Bolt Hole Spacing: 1-3/4" x 2-3/4" to 3"
• Bolt Hole Size: 5/16"
• Bearing: Plain
• Load Height: 3-1/2"
• Swivel Radius: 2-1/2"
• Durometer: 40 Shore D
• Temperature Range: -40° F to 180° F
• Weight Capacity: 110 lbs.
