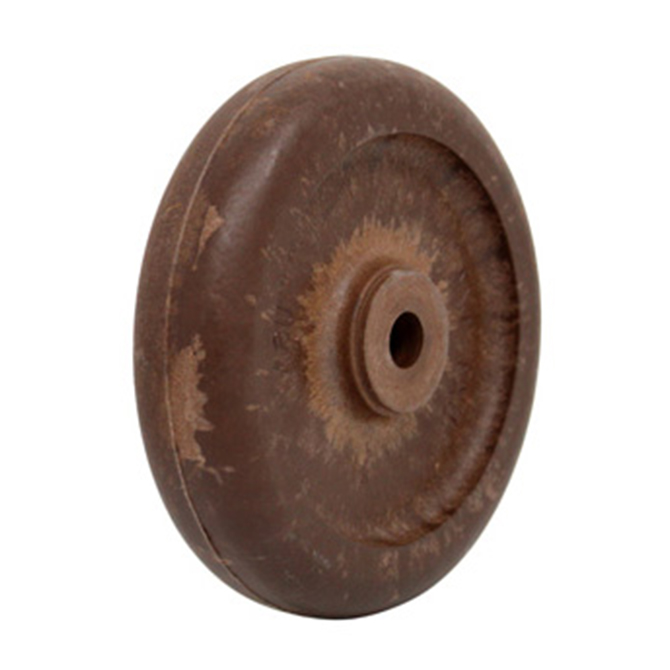

5"x 1-1/4" HIGH TEMP WHEEL
1-5/8" HUB LENGTH, 3/8" BORE

Description:

5" Thermo Wheel

Features:

• These wheels are molded from an exclusive engineered resin compound that offers a high standard operating temperature range, non-marking floor protection, near-zero water absorption, high load capacities and long service life
• A special maufacturing process enables the wheels to retain a consistent bearing bore even when exposed to elevated temperatures
• Highly resistant to animal fats, vegetable oils and salt solutions
• Life expectancy is three times longer than high-temp phenolic wheels and offer an equal load capacity
• Unlike high-temperature phenolic wheels, these wheels have no outer skin that can break and absorb water or other fluids
• 100% recyclable

Specifications:

• Diameter: 5"
• Tread Width: 1-1/4"
• Tread Material: Thermo (High Temp)
• Bearing: Plain
• Spanner Bushing Bore: 3/8"
• Spanner Bushing Length: 1-1/2"
• Wheel Hub Bore: 1/2"
• Wheel Hub Length: 1-7/16"
• Durometer: 85(±5) Shore D
• Temperature Range: -70° F to 480° F (525° F intermittent service)
• Weight Capacity: 325 lbs.
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
