Description:
Wave+Plus Magnifier

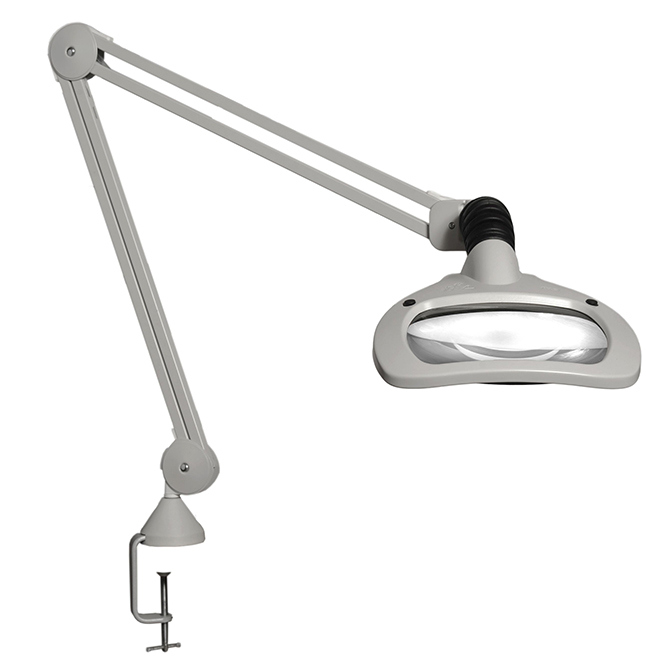

The WAVE+Plus Magnifier was introduced as the industry’s first rectangular-lensed illuminated magnifier. Now, over twenty years since its introduction, the WAVE+Plus Magnifier remains the top choice of technicians, assembly operators and quality control inspectors due to its wide-view, rectangular-shaped lens, excellent lighting and time-tested, heavy-duty internal-spring K-arm.
Features:
- 6.75” x 4.5” precision-ground white crown optical-quality glass lens
- Adjustable neck for positioning the magnifier head at the proper viewing angle so as to ensure the operator maintains correct posture
- 10-diopter swing away accessory lens available
- Lighting: two 13-watt quad compact fluorescent tubes
- Dual switches for independent lighting controls. With one light on, shadowing is possible; with both on full illumination results
- A blue indicator for each lamp (indicating on/off fluorescent tube)
- Heavy duty internal-spring K-arm, 0.5” square steel tubing – 20 gauge CRS
- ABS plastic construction with polycarbonate lamp (bulb) covers
- HF ballast
- UL/CUL listed
Specifications:
- Magnification: 3.5-diopter lenz (1.88X) or 5-diopter (2.25X) lens
- Total magnification possible: 4.75X
- 5 year warranty
ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
