5" TOTAL LOCK CASTER, POLY
PRECISION, SPECIFY BOLT STEM

Description:

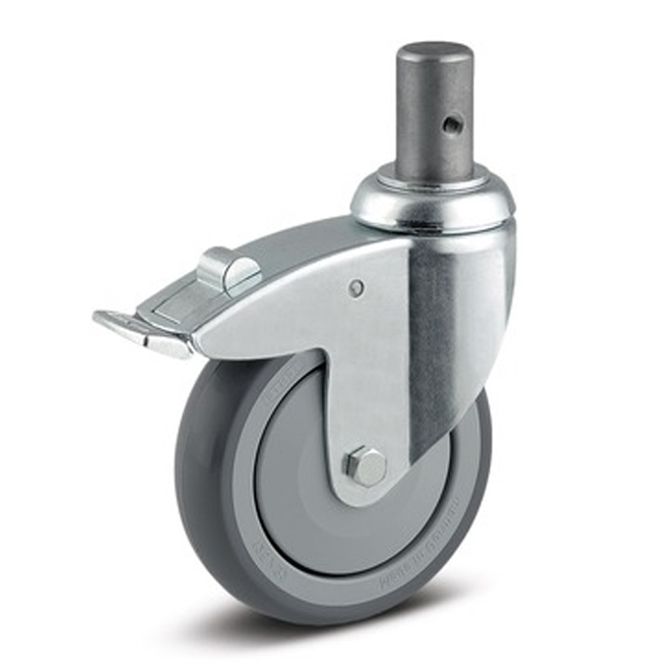

5" Total Lock Caster with Round Bolt Stem

Features:

• Housing made of pressed steel
• Bright zinc plated, blue passivated, double ball bearing swivel head
• Total lock brake locks the wheel and swivel mechanism simultaneously
• Bolt stem with 5/16" threaded hole 3/4" above mounting surface, for use with round tubing
• Threaded axles allow for easy wheel change
• Wheel center made of polyamide
• Threadguards included

Specifications:

• Diameter: 5"
• Tread Width: 1-1/4"
• Tread Material: Polyurethane
• Fitting: Round Bolt Stem
• Bearing: Precision Ball
• Brake: Total Lock Brake
• Load Height: 6-7/16"
• Swivel Radius: 5-5/32"
• Durometer: 40 Shore D
• Temperature Range: -40° F to 175° F
• Weight Capacity: 220 lbs.
• AL-41490MM for use with Hill-Rom Bed Models: 840/842, 820/822, 720/722, 715/717, 550/552, 450/452, 440/442, 430/432 & 420/422
• AL-41490MM Hill-Rom Part Number: 25635 and/or SA1219
• AL-41490MM also fits toe brake hospital beds from Amedco, Carron & Simmons
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• When ordering, please specify bolt stem size

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
