3"TOTAL LOCK CASTER, TPR
PRECISION,2-3/8" X 2-3/8"PLATE

Description:

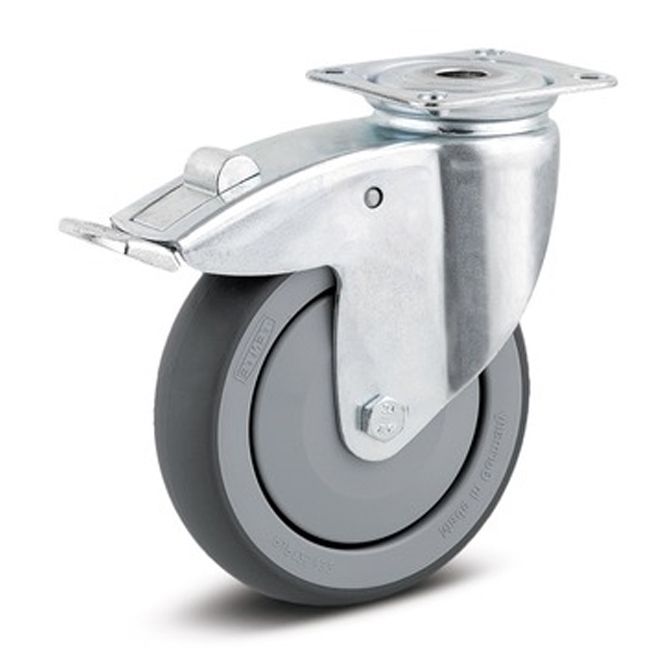

3" Total Lock Caster with Top Plate

Features:

• Housing made of pressed steel
• Bright zinc plated, blue passivated, double ball bearing swivel head
• Total lock brake locks the wheel and swivel mechanism simultaneously
• Threaded axles allow for easy wheel change
• Wheel center made of polypropylene
• Thermoplastic rubber tread is non-marking
• Threadguards included

Specifications:

• Diameter: 3"
• Tread Width: 1"
• Tread Material: Thermoplastic Rubber
• Top Plate Dimensions: 2-3/8" x 2-3/8"
• Bolt Hole Spacing: 1-1/2" x 1-1/2" or 1-29/32" x 1-29/32"
• Bolt Diameter: 1/4"
• Bearing: Precision Ball
• Brake: Total Lock Brake
• Load Height: 3-15/16"
• Swivel Radius: 3-5/32"
• Durometer: 85 Shore A
• Temperature Range: -4° F to 140° F
• Weight Capacity: 165 lbs.
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
