3" SWIVEL CASTER, TPR
PRECISION,2-3/8" X 2-3/8"PLATE

Description:

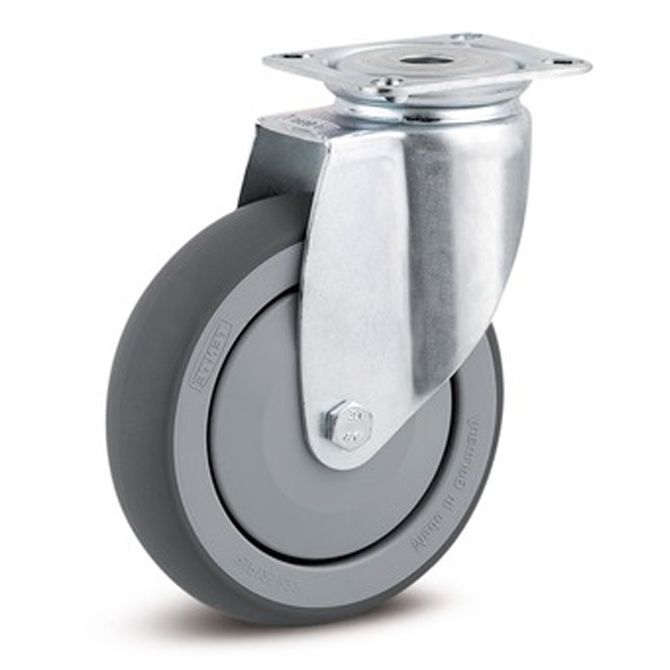

3" Swivel Caster with Top Plate

Features:

  • Housing made of pressed steel
  • Bright zinc plated, blue passivated, double ball bearing swivel head
  • Threaded axles allow for easy wheel change
  • Wheel center made of polypropylene
  • Thermoplastic rubber tread is non-marking
  • Threadguards included

Specifications:

  • Diameter: 3"
  • Tread Width: 1"
  • Tread Material: Thermoplastic Rubber
  • Top Plate Dimensions: 2-3/8" x 2-3/8"
  • Bolt Hole Spacing: 1-1/2" or 1-7/8" x 1-1/2" or 1-7/8"
  • Bolt Hole Size: 1/4"
  • Bearing: Precision Ball
  • Load Height: 3-15/16"
  • Swivel Radius: 2-7/16"
  • Durometer: 85 Shore A
  • Temperature Range: -4° F to 140° F
  • Weight Capacity: 165 lbs.
  • For California residents only:
    ⚠ #1 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN

  • Item #: AL-41467PG
