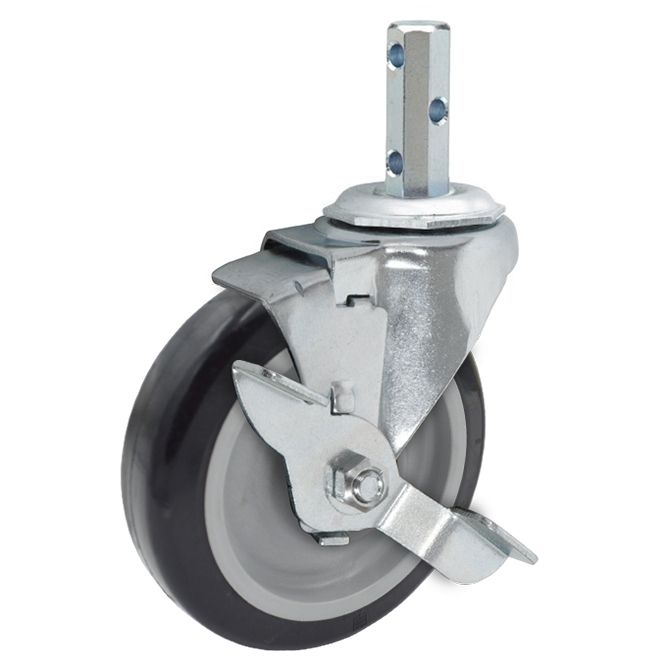

4" SWIVEL CASTER WITH BRAKE
3/4" X 2-7/16" OCTAGON STEM

Description:

4" Swivel Caster with Brake and Octagon Stem

Features:

• Constructed from heavy duty gauge steel, formed for extra strength
• Bright zinc plated
• Full double ball swivel raceway, hardened to resist wear
• Side mounted brake lever locks the wheel only
• 3/4" octagon stem is cross-drilled with three 5/16" holes
• 3/8" diameter axle bolt with lock nut
• 1/2" king pin, hydraulically upset to increase shock absorbing capacity
• Polyurethane tread mechanically bonded to a polypropylene core provides a soft cushion ride like rubber, but is non-marking and floor protective
• Resistant to most chemicals, oils, acids, grease and water

Specifications:

• Diameter: 4"
• Tread Width: 1-1/4"
• Tread Material: Polyurethane
• Octagon Stem Size: 3/4" x 2-7/16"
• Bearing: Ball
• Brake: Side Lock Wheel Brake
• Load Height: 5-1/8"
• Swivel Radius: 3-1/2"
• Weight Capacity: 280 lbs.
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
