4" SWIVEL CASTER WITH BRAKE
HEAVY PLASTIC, OCTAGON STEM

Description:

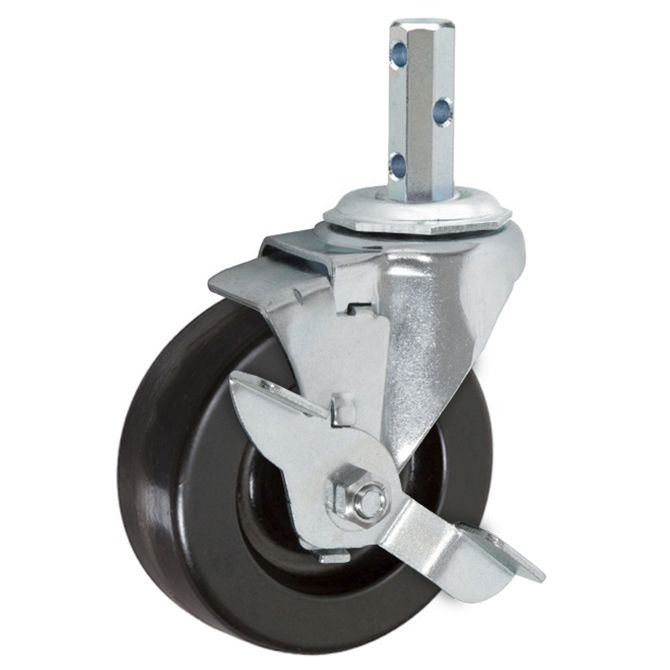

4" Swivel Caster with Brake and Octagon Stem

Features:

• Constructed from heavy duty gauge steel, formed for extra strength
• Bright zinc plated
• Full double ball swivel raceway, hardened to resist wear
• Side mounted brake lever locks the wheel only
• 3/4" octagon stem is cross-drilled with three 5/16" holes
• 3/8" diameter axle bolt with lock nut
• 1/2" king pin, hydraulically upset to increase shock absorbing capacity
• Injection molded polyolefin/polypropylene wheel provides high impact strength
• Unaffected by most chemicals, solvents, oils and does not absorb water or leave markings

Specifications:

• Diameter: 4"
• Tread Width: 1-15/32"
• Tread Material: Heavy Duty Plastic
• Octagon Stem Size: 3/4" x 2-7/16"
• Bearing: Plain
• Brake: Side Lock Wheel Brake
• Load Height: 5"
• Swivel Radius: 3-1/4"
• Weight Capacity: 300 lbs.
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
