5" SWIVEL CASTER, POLYURETHANE
PRECISION, SPECIFY BOLT STEM

Description:

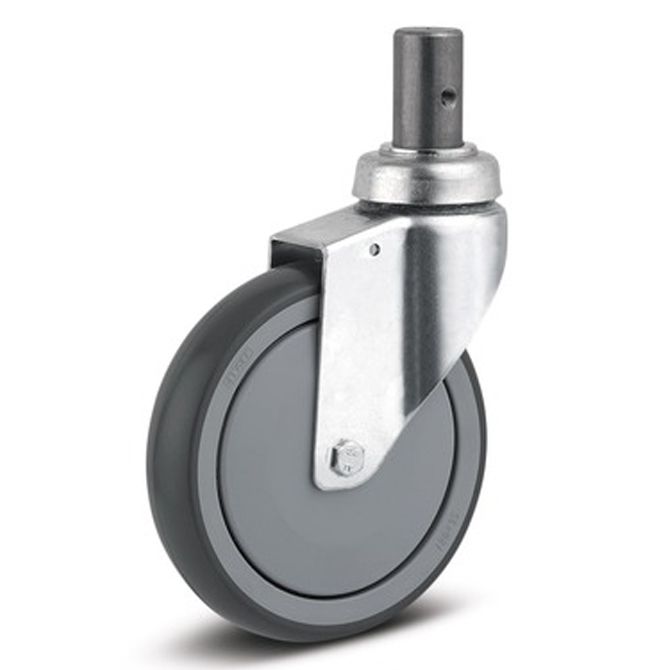

5" Swivel Caster with Round Bolt Stem

Features:

• Housing made of pressed steel
• Bright zinc plated, blue passivated, covered precision ball bearing swivel head
• Bolt stem with 5/16" threaded hole 3/4" above mounting surface, for use with round tubing
• Hardened balls and tracks, bearing sleeve welded to fork
• Threaded axles allow for easy wheel change
• Wheel center made of polyamide
• Threadguards included

Specifications:

• Diameter: 5"
• Tread Width: 1-1/4"
• Tread Material: Polyurethane
• Fitting: Round Bolt Stem
• Bearing: Precision Ball
• Load Height: 6-11/16"
• Swivel Radius: 4-5/32"
• Durometer: 40 Shore D
• Temperature Range: -40° F to 175° F
• Weight Capacity: 330 lbs.
• AL-40994MM for use with Hill-Rom Bed Models: Advance 1000/2000, 1105/1115, 1135/1145 & 8400/8500
• AL-40994MM Hill-Rom Part Number: 4508450 and/or 43840
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• When ordering, please specify round bolt stem size

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
