3" TOTAL LOCK CASTER, RUBBER
CONE BALL, SPECIFY BOLT STEM

Description:

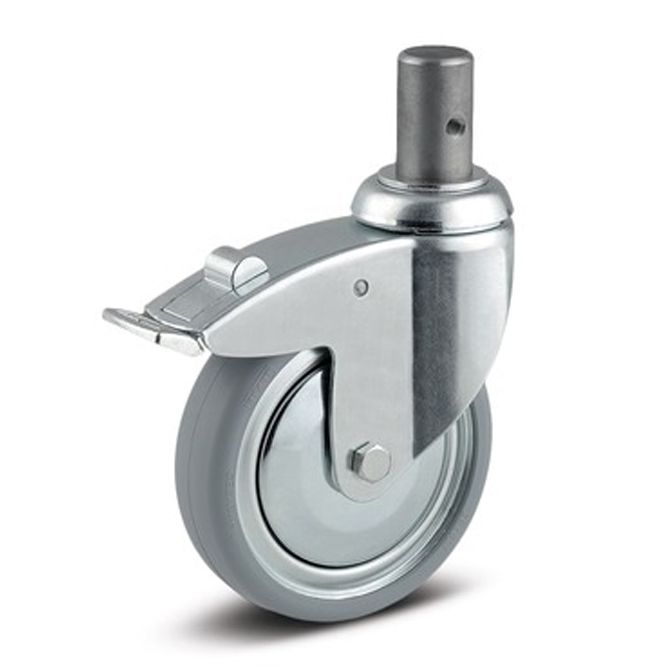

3" Total Lock Caster with Round Bolt Stem

Features:

• Housing made of pressed steel
• Bright zinc plated, blue passivated, double ball bearing swivel head
• Total lock brake locks the wheel and swivel mechanism simultaneously
• Bolt stem with 5/16" threaded hole 3/4" above mounting surface, for use with round tubing
• Threaded axles allow for easy wheel change
• Wheel center made of pressed steel
• Solid rubber tread is non-marking
• Threadguards included

Specifications:

• Diameter: 3"
• Tread Width: 1"
• Tread Material: Rubber
• Fitting: Round Bolt Stem
• Bearing: Cone Ball
• Brake: Total Lock Brake
• Load Height: 4-1/16"
• Swivel Radius: 3-5/32"
• Durometer: 80 Shore A
• Temperature Range: -4° F to 185° F
• Weight Capacity: 120 lbs.
• AL-18536MM for use with Hill-Rom Bed Models: Long Term Care
• AL-18536MM Hill-Rom Part Number: D79X034
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• When ordering, please specify bolt stem size
