5" SWIVEL CASTER, RUBBER
CONE BALL, SPECIFY BOLT STEM

Description:

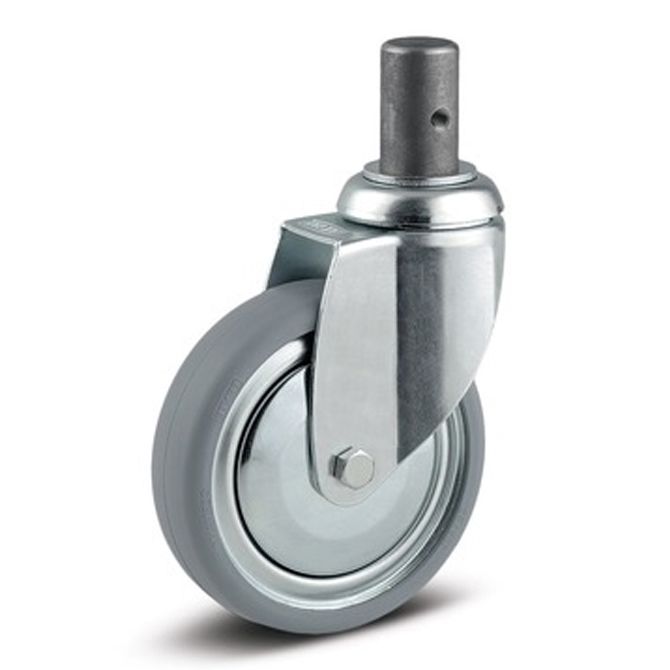

5" Swivel Caster with Round Bolt Stem

Features:

• Housing made of pressed steel
• Bright zinc plated, blue passivated, double ball bearing swivel head
• Bolt stem with 5/16" threaded hole 3/4" above mounting surface, for use with round tubing
• Threaded axles allow for easy wheel change
• Wheel center made of pressed steel
• Solid rubber tread is non-marking
• Threadguards included

Specifications:

• Diameter: 5"
• Tread Width: 1-1/4"
• Tread Material: Rubber
• Fitting: Round Bolt Stem
• Bearing: Cone Ball
• Load Height: 6-7/16"
• Swivel Radius: 4-1/16"
• Durometer: 80 Shore A
• Temperature Range: -4° F to 185° F
• Weight Capacity: 220 lbs.
• AL-18509MM for use with Hill-Rom Bed Models: 840/842, 820/822, 720/722, 715/717, 550/552, 450/452, 440/442, 430/432, 420/422, 835/837 Century 2, 850/852, 1100, 1110, 1120, 1130, 1140 & Advance 1000/2000/1060/1062
• AL-18509MM Hill-Rom Part Number: 31632, SA1358, SA1358-R1 & 4384148
• AL-18509MM also fits hospital beds from SSI, Kinetic Concepts, Amedco, Carron & Simmons
• For California residents only:
   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• When ordering, please specify round bolt stem size

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
