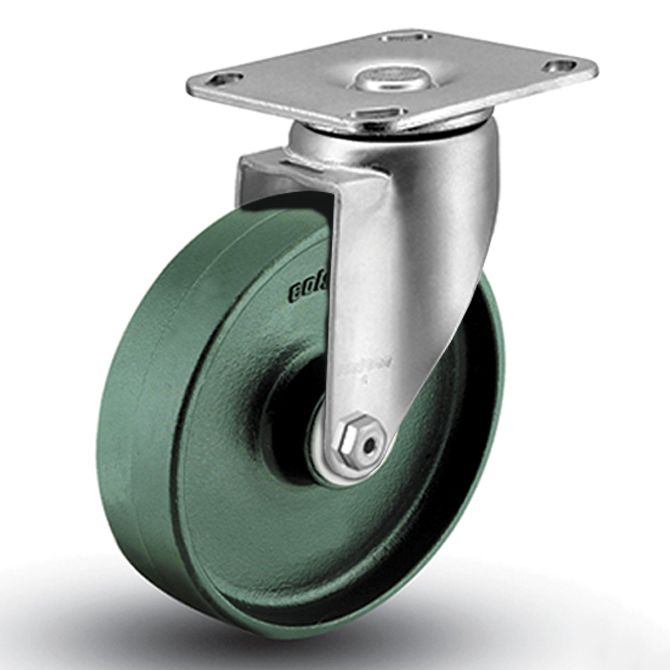

3" SWIVEL CASTER, CAST IRON
ROLLER, 3-3/4" X 4-3/8" PLATE

Description:

3" Swivel Caster with Top Plate

Features:

• Zinc-plated finish is attractive and durable
• Full double ball hardened raceways for better performance and greater durability
• 3/8" hollow axle with lock nut
• Permanent rivet kingpin construction
• Reinforcing washer on upper and lower raceways
• Grease hole on wheel bearing
• Multi-temp grease lubricates in extreme hot and cold temperatures
• 5/32" thick steel top plate
• Cast iron wheel should be used when excessive load weights are involved and floor protection is not a factor; its high strength withstands sharp impacts

Specifications:

• Diameter: 3"
• Tread Width: 1-1/2"
• Tread Material: Cast Iron
• Top Plate Dimensions: 3-3/4" x 4-3/8"
• Bolt Hole Spacing: 2-5/8" x 3"
• Bolt Diameter: 3/8"
• Bearing: Roller
• Load Height: 4-1/2"
• Swivel Radius: 3-1/8"
• Weight Capacity: 400 lbs.
