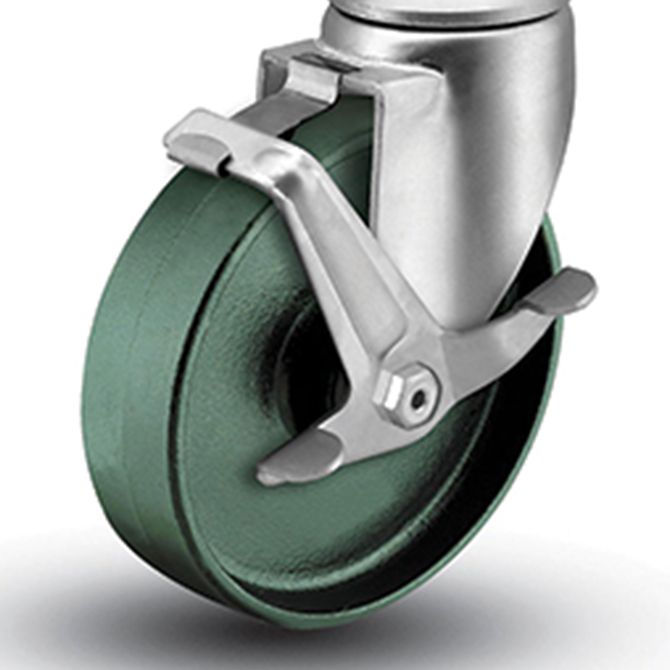

3 SERIES TOP LOCK BRAKE
SPECIFY CASTER SIZE

Description:

Top Lock Brake Add-On Kit

Features:

• Gives positive braking action on all types of wheels by engaging a rubber brake shoe directly against the tread surface of the wheel
• A self-compensating spring maintains the effectiveness of the brake throughout the life of the wheel
• Thread guards can also be used with this brake
• Brake pedals are rugged .090" steel, zinc plated

Specifications:

• For use with Colson 3 Series swivel casters
• 4" Caster Swivel Radius with Brake: 3-11/16"
• 5" Caster Swivel Radius with Brake: 3-13/16"
• 6" Caster Swivel Radius with Brake: 4-1/8"
• 8" Caster Swivel Radius with Brake: 4-5/8"
• Weight Capacity: 400 lbs.
• When ordering, please specify caster wheel diameter
