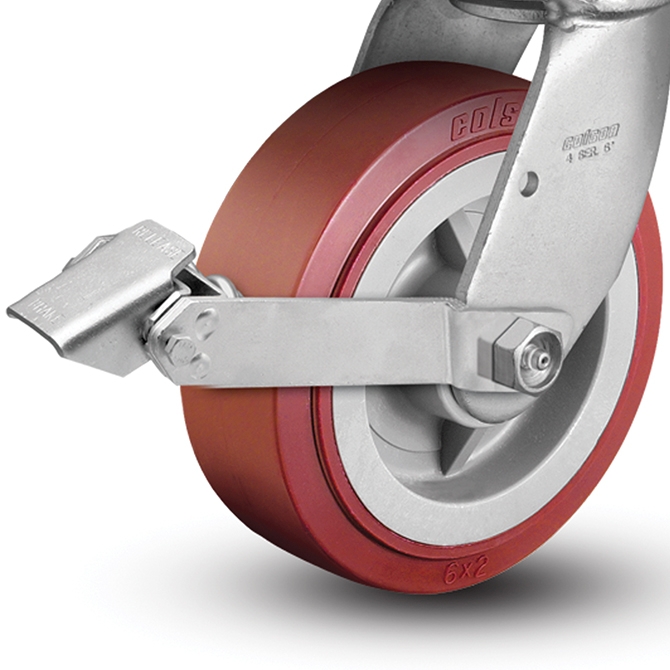

4 & 6 SERIES TREAD LOCK BRAKE
SPECIFY CASTER SIZE

Description:

Tread Lock Brake Add-On Kit

Features:

• The toe activated brake features positive engagement via rubber faced plate

Specifications:

• For use with Colson 4 & 6 Series swivel casters
• 4" 4 Series Caster Swivel Radius with Brake: 5-5/16"
• 5" 4 Series Caster Swivel Radius with Brake: 6-5/8"
• 6" 4 Series Caster Swivel Radius with Brake: 7-5/16"
• 8" 4 Series Caster Swivel Radius with Brake: 8-1/2"
• 4" 6 Series Caster Swivel Radius with Brake: 5-3/8"
• 5" 6 Series Caster Swivel Radius with Brake: 6-9/16"
• 6" 6 Series Caster Swivel Radius with Brake: 7-1/8"
• 8" 6 Series Caster Swivel Radius with Brake: 8-9/16"
• Weight Capacity: 1,500 lbs.
• When ordering, please specify caster wheel diameter

ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
